spesifikasjoner
Skjæreområde: 3000mm * 1500mm
Klipphastighet: 30m / min
Grafisk format støttet: AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Søknad: Laserskæring
Tilstand: Ny
Skjæretykkelse: Materialer
CNC eller Ikke: Ja
Kjølemodus: Vannkjøling
Control Software:Shanghai Cypcut
Opprinnelsessted: Anhui, Kina (fastlandet)
Merkenavn: ACCURL
Sertifisering: CE, ISO, SGS, UL, CCC
Warranty:2 Years, 10 years machine structure
Power mode:Fiber
Lathe bed:Plate welded structure
Cast aluminum beam:High accuracy&Easy installation
Auto lubrication system:Free of maintenance
High precision:Ensure cutting quality
Laser cutting head:US IPG /Raycus
Work life:100k hours
Guarantee:2 years for main parts
Cutting speed:0-35m/min
produktbeskrivelse
Produktapplikasjon

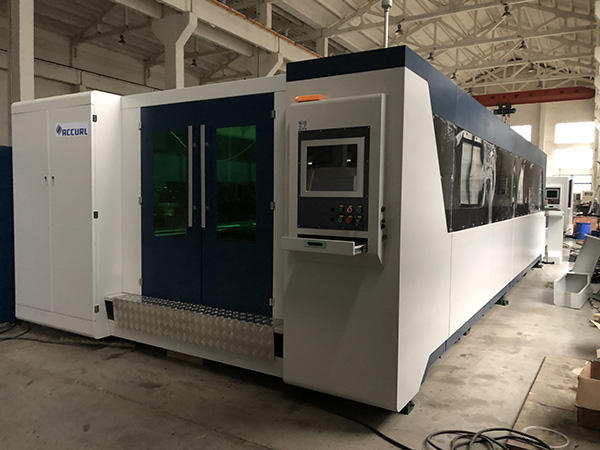

bottom price laser cutting machine 1000w 1000w with wifi wireless control
Metal Laser Cutting Machine is equipped with the most advanced international imported fiber laser source which generates powerful laser focused on objects to cause instant melting and evaporation. Automatic cutting is controlled by digitalized mechanic system. This hi-tech machine has condensed the advanced technologies of fiber laser, digital,and precise mechanics.
Laser Cutting Machine Metal Technical Parameters
Arbeidsplass | 1500X3000mm |
Laser utgangseffekt | 500w-4000w |
Applicable Material | medium thickness metal sheet |
Laserbølgelengde | 1070nm+10nm |
Skjære tykkelse | ≤16mm |
Maximum Travel Speed | 60m / min |
Maksimal klippehastighet | 30m / min |
Posisjonsnøyaktighet | ± 0.05mm |
Laserbølgelengde | 1070nm+10nm |
Laser Cutting Machine Metal Main Features
(1) Very low cost, every hour only consumed 0.5W to 1.5W electricity, cutting all kinds of sheet metal by air;
(2) Imported original fiber lasers, High and stable function, lifespan is over 100,000 hours;
(3) Higher cutting speed and efficient, speed of cutting plate can reach over 10 meters Laser free maintenance;
(4) Smooth and fine edge or surface and small distortion;
(5)Imported servo motor and gearing system to guarantee precise cutting;
(6)Dedicated software enables graphic or text to instantly designed or processed. Flexible and easy operation.
Detailed Images
Without manual focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger adjustment range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long service life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.
1.Direct control of all the fiber laser functions; Synchronized control of the laser source;
2. High speed perforation
3. Cutting data library;
4. More than 100,000 hours work-life of pumped diode,almost free maintenance.
To maintain stability: – All steel raw material is annealed to release the inner stress. – The bed is vibrated till the stress is relieved to be qualified.
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
High strength, stability, tensile strength, ensuring 20 years of use without distortion;
Thickness of rectangular pipe wall is 10mm,and weights 4500 kg.
Føringsskinne
1. Wear resisting
2. Higher speed and Stable performance
3. Noise volume is lower
4. High accuracy and long service life
FAQ
1.Q:Are you trading company or manufacturer?
A: a laser machinery manufacturer dedicated to laser machinery production and concentrates innovation and R&D in laser machines.
2. Q: There are so many machine types, which one should I choose?
A: gir maskinparametere i hver produktdemoside, vennligst sjekk teknisk datakolonne. Det er viktig å sammenligne alle data før du velger den beste prototypen. Vårt salgsteam tilbyr også onlinetjenester for å løse forvirringen din. Ta gjerne kontakt med oss.
3.Q: I am looking for fiber laser cutting machine 1000w, any recommendation?
A: Hi, there. Thank you for your concern about our laser cutting machine 1000w. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand.
4. Q:When I got this CNC Laser cutting machine meta/ fiber laser and metal laser cutting machine 1000w, but I don't know how to use it. What should I do?
A: We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
5.Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1) Materialet av metall eller ikke-metallmateriale. Fordi i fabrikken vår har vi forskjellige modeller i henhold til arbeidsområdet.
2) Materialene dine.
Metall / akryl / kryssfiner / MDF?
3) Du vil grave eller kutte?
Hvis kuttet, kan du fortelle meg kuttetykkelsen din? Fordi forskjellig skjære tykkelse trenger forskjellige laserrør strøm og laser strømleverandør.
